mapboxgl+geoserver開發向量地圖

mapboxgl可以呼叫mapbox公司自己的地圖,那麼如果我們需要釋出自己的向量瓦片,有幾種方法

1.使用商業GIS軟體,如國產的超圖支援MVT釋出

2.使用開源的GIS服務軟體,比如geoserver

實現方法:

geoserver的新版本,2.14.1已經集成了mbtiles,老版本需要下載plugin才行

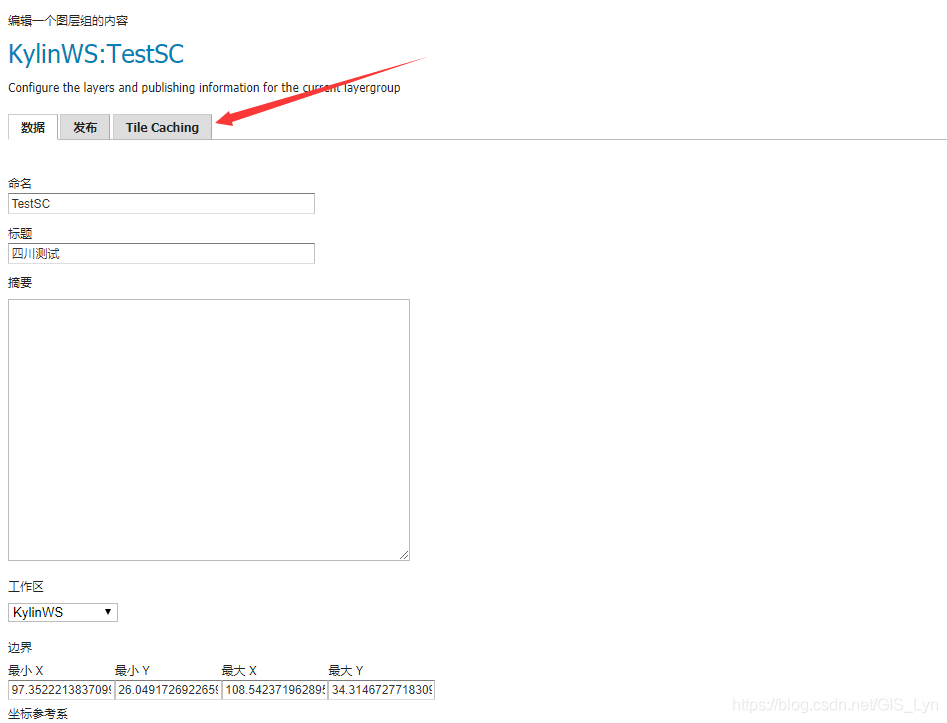

在geoserver中釋出向量地圖,建立自己的layergroup,在圖層組的設定頁面,點Tile caching 標籤

在Tile Image Formats中勾選  application/x-protobuf;type=mapbox-vector

以上在geoserver中釋出mbtiles完成



以下是呼叫的方法

需要掌握mapboxgl中 sprite(字型庫)、glyphs的概念

需要掌握mapboxgl中styles的設定

程式碼

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>向量瓦片</title>
    <meta http-equiv="X-UA-Compatible" content="IE=Edge">
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no, width=device-width">
    <style>
        html, body {
            margin: 0;
            padding: 0;
            height: 100%;
            width: 100%;
            position: relative;
        }


    </style>


    <script src='../../libs/mapbox-gl-js/mapbox-gl.js'></script>
    <link href='../../libs/mapbox-gl-js/mapbox-gl.css' rel='stylesheet' />
    <script src='../js/jquery.min.js'></script>
</head>

    <body style=" margin: 0;overflow: hidden;background: #fff;width: 100%;height:100%;position: absolute;top: 0;">
        <div id="map" style="margin:0 auto;width: 100%;height: 100%"></div>
        <script>

            var map, threeLayer, position = [104.07898, 30.66147];

            mapboxgl.accessToken = 'pk.eyJ1IjoiYWhvY2V2YXIiLCJhIjoiRk1kMWZaSSJ9.E5BkluenyWQMsBLsuByrmg';



            var simple = {
                "version": 8,
                "sprite":"http://" + window.location.host +"/examples/data/mbstyle/ArcTilerWeb/sprites/sprite",
                "glyphs": "http://" + window.location.host + "/examples/data/mbstyle/ArcTilerWeb/fonts/{fontstack}/{range}.pbf",
                "sources": {
                    "composite": {
                        "url": "mapbox://mapbox.mapbox-terrain-v2",
                        "type": "vector"
                    },
                    "esri": {
                        "type": "vector",
                        "scheme": "tms",
                        "tiles": [
                            "http://localhost:8080/geoserver/gwc/service/tms/1.0.0/KylinWS:
[email protected]
:[email protected]/{z}/{x}/{y}.pbf" ] }, }, "layers": [ { "id": "cityregion", "type": "fill", "source": "esri", "source-layer": "cityregion", "layout": {}, "paint": { "fill-color": "#D4CDBC" } }, { "id": "ShuiXiPolygon", "type": "fill", "source": "esri", "source-layer": "ShuiXiPolygon", "layout": {}, "paint": { "fill-color": "#73B2FF" } }, { "id": "XianDao/1", "type": "line", "source": "esri", "source-layer": "XianDao", "minzoom": 8.58, "layout": { "line-cap": "round", "line-join": "round" }, "paint": { "line-color": "#B9B7B9", "line-width": 4.13333 } }, { "id": "XianDao/0", "type": "line", "source": "esri", "source-layer": "XianDao", "minzoom": 8.58, "layout": { "line-cap": "round", "line-join": "round" }, "paint": { "line-color": "#FFFFFF", "line-width": 2.13333 } }, { "id": "ShengDao/1", "type": "line", "source": "esri", "source-layer": "ShengDao", "layout": { "line-cap": "round", "line-join": "round" }, "paint": { "line-color": "#D4C9B4", "line-width": 4.66667 } }, { "id": "ShengDao/0", "type": "line", "source": "esri", "source-layer": "ShengDao", "layout": { "line-cap": "round", "line-join": "round" }, "paint": { "line-color": "#FFF9CC", "line-width": 2.66667 } }, { "id": "GuoDao/1", "type": "line", "source": "esri", "source-layer": "GuoDao", "layout": { "line-cap": "round", "line-join": "round" }, "paint": { "line-color": "#E68C65", "line-width": 5.06667 } }, { "id": "GuoDao/0", "type": "line", "source": "esri", "source-layer": "GuoDao", "layout": { "line-cap": "round", "line-join": "round" }, "paint": { "line-color": "#FFE6CF", "line-width": 3.06667 } }, { "id": "gaosu/1", "type": "line", "source": "esri", "source-layer": "gaosu", "layout": { "line-cap": "round", "line-join": "round" }, "paint": { "line-color": "#B35933", "line-width": 5.6 } }, { "id": "gaosu/0", "type": "line", "source": "esri", "source-layer": "gaosu", "layout": { "line-cap": "round", "line-join": "round" }, "paint": { "line-color": "#E69973", "line-width": 4 } }, { "id": "TieLu/1", "type": "line", "source": "esri", "source-layer": "TieLu", "layout": { "line-join": "round" }, "paint": { "line-color": "#BFB8AA", "line-width": 1.88973 } }, { "id": "TieLu/0", "type": "line", "source": "esri", "source-layer": "TieLu", "layout": { "line-join": "round" }, "paint": { "line-color": "#E6E6E6", "line-width": 0.755867, "line-dasharray": [ 10.5839, 12.3479 ] } }, { "id": "GuoDao/label/Class 1", "type": "symbol", "source": "esri", "source-layer": "GuoDao", "minzoom": 9.87, "layout": { "symbol-placement": "line", "text-font": [ "Microsoft YaHei Regular" ], "text-size": 13.3333, "text-max-width": 8, "text-field": "{PathName}", "text-optional": true }, "paint": { "text-color": "#000000" } }, { "id": "gaosu/label/Class 1", "type": "symbol", "source": "esri", "source-layer": "gaosu", "layout": { "symbol-placement": "line", "text-font": [ "Microsoft YaHei Regular" ], "text-size": 13.3333, "text-max-width": 8, "text-field": "{PathName}", "text-optional": true }, "paint": { "text-color": "#000000" } }, { "id": "citypoint", "type": "symbol", "source": "esri", "source-layer": "citypoint", "layout": { "icon-image": "citypoint", "icon-allow-overlap": true, "text-font": [ "Microsoft YaHei Regular" ], "text-size": 13.3333, "text-anchor": "bottom", "text-max-width": 8, "text-field": "{Name}", "text-optional": true }, "paint": { "text-color": "#000000", "text-halo-color": "#E1E1E1", "text-halo-width": 1.33333 } }, { "id": "XianPoint", "type": "symbol", "source": "esri", "source-layer": "XianPoint", "minzoom": 7.94, "layout": { "icon-image": "XianPoint", "icon-allow-overlap": true, "text-font": [ "Microsoft YaHei Regular" ], "text-size": 13.3333, "text-anchor": "center", "text-max-width": 8, "text-field": "{Name}", "text-optional": true }, "paint": { "text-color": "#000000" } }, { "id": "XianZhen", "type": "symbol", "source": "esri", "source-layer": "XianZhen", "minzoom": 9.98, "layout": { "icon-image": "XianZhen", "icon-allow-overlap": true, "text-font": [ "Microsoft YaHei Regular" ], "text-size": 13.3333, "text-anchor": "bottom", "text-max-width": 8, "text-field": "{Name}", "text-optional": true }, "paint": { "text-color": "#000000" } } ] } var map = new mapboxgl.Map({ container: 'map', style: simple, zoom: 8, center: [104.07898, 30.66147] }); map.addControl(new mapboxgl.NavigationControl(), 'top-left'); </script> </body> </html>

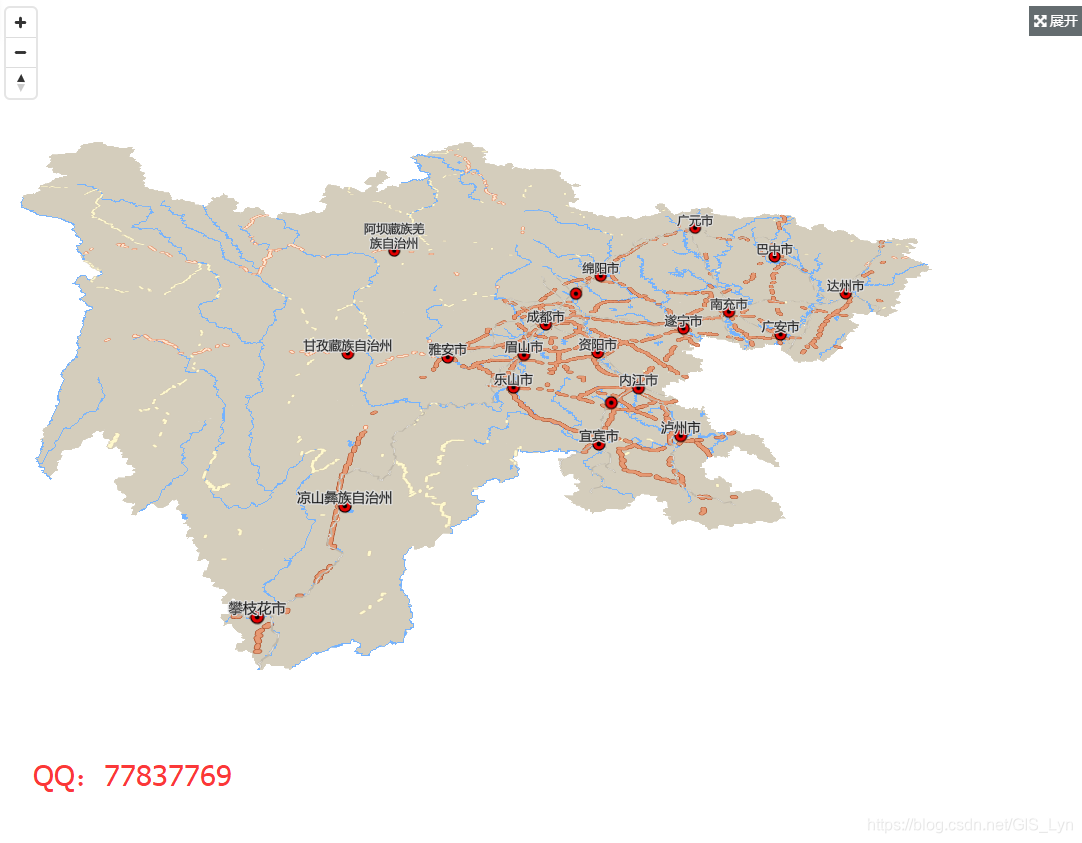

效果
