SSD模型實現工件裂紋檢測

一、介紹

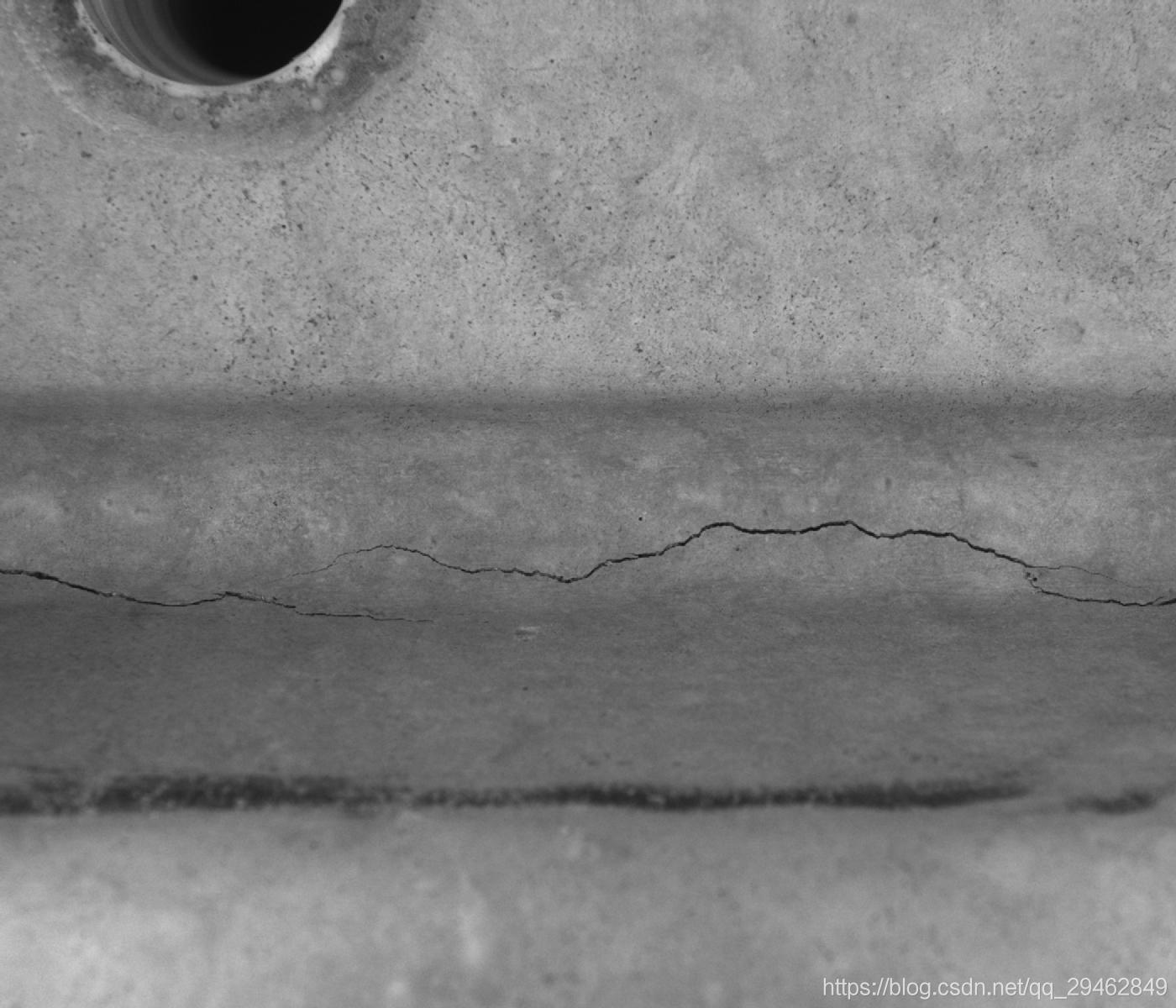

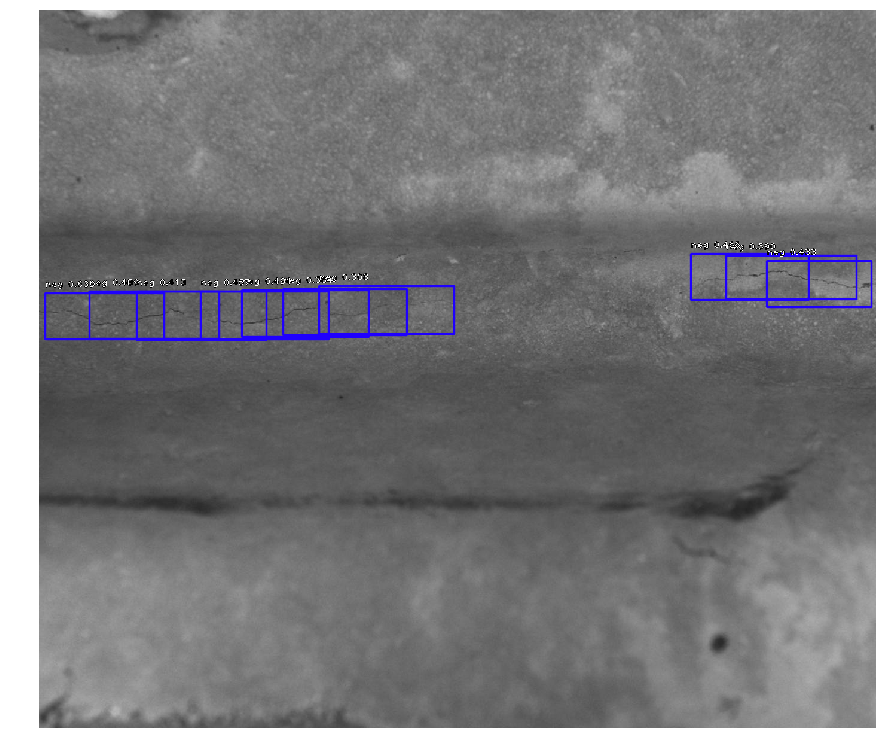

本博文主要介紹實現通過SSD物體檢測方式實現工件裂紋檢測。裂紋影象如下所示: 在這裡插入圖片描述 在這裡插入圖片描述

二、關於SSD演算法

三、訓練資料的製作

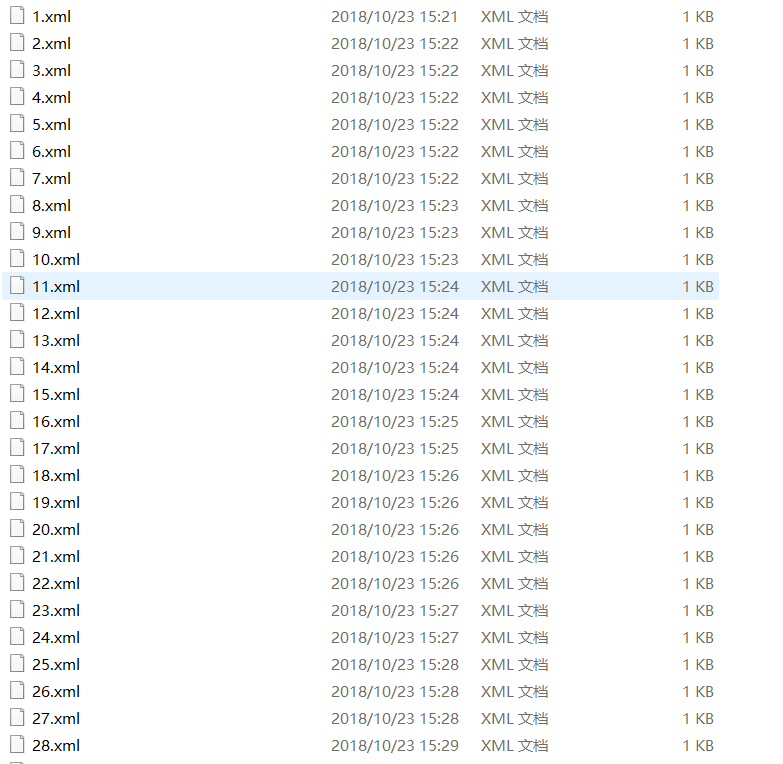

這裡使用的是VOC2007的資料格式,資料夾下面一共三個子資料夾。 在這裡插入圖片描述 其中,Annotations資料夾存放的是LbaelImg製作資料生成的xml檔案。 在這裡插入圖片描述

JPEGImages存放的是原影象,.jpg格式。 在這裡插入圖片描述 ImageSets下面有一個Main資料夾,Main資料夾下面主要是四個txt檔案。 在這裡插入圖片描述 分別對應訓練集、測試集、驗證集等。該資料夾中的四個txt檔案,是從Annotations資料夾中隨機選取的影象名稱,並按照一定的比例劃分。

實現原始碼如下:

import os
import random

trainval_percent = 0.9
train_percent = 0.9
xmlfilepath = 'F:/competition code/ssd_keras-master/ssd_keras-master/data/liewen_two_class/Annotations'
txtsavepath = 'F:/competition code/ssd_keras-master/ssd_keras-master/data/liewen_two_class/ImageSets/Main'
total_xml = os.listdir(xmlfilepath)

num=len(total_xml)
list=range(num)
tv=int(num*trainval_percent)
tr=int(tv*train_percent)
trainval= random.sample(list,tv)
train=random.sample(trainval,tr)

ftrainval = open(txtsavepath+'/trainval.txt', 'w')
ftest = open(txtsavepath+'/test.txt', 'w')
ftrain = open(txtsavepath+'/train.txt', 'w')
fval = open(txtsavepath+'/val.txt', 'w')

for i  in list:
    name=total_xml[i][:-4]+'\n'
    if i in trainval:
        ftrainval.write(name)
        if i in train:
            ftrain.write(name)
        else:
            fval.write(name)
    else:
        ftest.write(name)

ftrainval.close()
ftrain.close()
fval.close()
ftest .close()

四、訓練資料

訓練資料的檔案為train_ssd300.py,顧名思義就是影象的輸入是300x300,不過不用擔心,程式碼內部已經實現轉換的程式,可以輸入任意尺寸的影象,原始碼如下:

from keras.optimizers import Adam, SGD
from keras.callbacks import ModelCheckpoint, LearningRateScheduler, TerminateOnNaN, CSVLogger
from keras import backend as K
from keras.models import load_model
from math import ceil
import numpy as np
from matplotlib import pyplot as plt

from models.keras_ssd300 import ssd_300
from keras_loss_function.keras_ssd_loss import SSDLoss
from keras_layers.keras_layer_AnchorBoxes import AnchorBoxes
from keras_layers.keras_layer_DecodeDetections import DecodeDetections
from keras_layers.keras_layer_DecodeDetectionsFast import DecodeDetectionsFast
from keras_layers.keras_layer_L2Normalization import L2Normalization

from ssd_encoder_decoder.ssd_input_encoder import SSDInputEncoder
from ssd_encoder_decoder.ssd_output_decoder import decode_detections, decode_detections_fast

from data_generator.object_detection_2d_data_generator import DataGenerator
from data_generator.object_detection_2d_geometric_ops import Resize
from data_generator.object_detection_2d_photometric_ops import ConvertTo3Channels
from data_generator.data_augmentation_chain_original_ssd import SSDDataAugmentation
from data_generator.object_detection_2d_misc_utils import apply_inverse_transforms
import tensorflow as tf

from keras import backend as K
from focal_loss import focal_loss


img_height = 300 # Height of the model input images
img_width = 300 # Width of the model input images
img_channels = 3 # Number of color channels of the model input images
mean_color = [123, 117, 104] # The per-channel mean of the images in the dataset. Do not change this value if you're using any of the pre-trained weights.
swap_channels = [2, 1, 0] # The color channel order in the original SSD is BGR, so we'll have the model reverse the color channel order of the input images.
n_classes = 1 # 類的數量,不算背景
scales_pascal = [0.1, 0.2, 0.37, 0.54, 0.71, 0.88, 1.05] # The anchor box scaling factors used in the original SSD300 for the Pascal VOC datasets
#一共在六個不同scale層次上進行取樣,最後一個1.05應該是無效的,scales中的數字代表生成檢測框的長度是feature map的長度的0.1,0.2,0.37,0.54.。。倍,
# 長寬比例對應在aspect_ratios中,不同scale取樣的anchor數量和比例也不相同
scales_coco = [0.07, 0.15, 0.33, 0.51, 0.69, 0.87, 1.05] # The anchor box scaling factors used in the original SSD300 for the MS COCO datasets
scales = scales_pascal
aspect_ratios = [[1.0, 2.0, 0.5],
                 [1.0, 2.0, 0.5, 3.0, 1.0/3.0],
                 [1.0, 2.0, 0.5, 3.0, 1.0/3.0],
                 [1.0, 2.0, 0.5, 3.0, 1.0/3.0],
                 [1.0, 2.0, 0.5],
                 [1.0, 2.0, 0.5]] # The anchor box aspect ratios used in the original SSD300; the order matters
two_boxes_for_ar1 = True
steps = [8, 16, 32, 64, 100, 300] # The space between two adjacent anchor box center points for each predictor layer.
offsets = [0.5, 0.5, 0.5, 0.5, 0.5, 0.5] # The offsets of the first anchor box center points from the top and left borders of the image as a fraction of the step size for each predictor layer.
clip_boxes = False # Whether or not to clip the anchor boxes to lie entirely within the image boundaries
variances = [0.1, 0.1, 0.2, 0.2] # The variances by which the encoded target coordinates are divided as in the original implementation
normalize_coords = True

# 載入或者重新建立一個模型,二者選其一
# 1: Build the Keras model.

K.clear_session() # Clear previous models from memory.

model = ssd_300(image_size=(img_height, img_width, img_channels),
                n_classes=n_classes,
                mode='training',
                l2_regularization=0.0005,
                scales=scales,
                aspect_ratios_per_layer=aspect_ratios,
                two_boxes_for_ar1=two_boxes_for_ar1,
                steps=steps,
                offsets=offsets,
                clip_boxes=clip_boxes,
                variances=variances,
                normalize_coords=normalize_coords,
                subtract_mean=mean_color,
                swap_channels=swap_channels)

# 2: Load some weights into the model.

# TODO: Set the path to the weights you want to load.
weights_path = 'VGG_ILSVRC_16_layers_fc_reduced.h5'

model.load_weights(weights_path, by_name=True)
model.summary()
# 3: Instantiate an optimizer and the SSD loss function and compile the model.
#    If you want to follow the original Caffe implementation, use the preset SGD
#    optimizer, otherwise I'd recommend the commented-out Adam optimizer.

# adam = Adam(lr=0.001, beta_1=0.9, beta_2=0.999, epsilon=1e-08, decay=0.0)
sgd = SGD(lr=0.0001, momentum=0.9, decay=0.001, nesterov=False)

ssd_loss = SSDLoss(neg_pos_ratio=3, alpha=1.0)

model.compile(optimizer=sgd, loss=ssd_loss.compute_loss, metrics=['accuracy'])


# model.compile(optimizer=sgd,  loss='categorical_crossentropy', metrics=['accuracy'])
#模型載入結束

# 注意,這裡出現了梯度爆炸

#載入資料

# 1: Instantiate two `DataGenerator` objects: One for training, one for validation.

# Optional: If you have enough memory, consider loading the images into memory for the reasons explained above.

train_dataset = DataGenerator(load_images_into_memory=False, hdf5_dataset_path=None)
val_dataset = DataGenerator(load_images_into_memory=False, hdf5_dataset_path=None)

# 2: Parse the image and label lists for the training and validation datasets. This can take a while.

# TODO: Set the paths to the datasets here.

# The directories that contain the images.
VOC_2007_images_dir      = 'F:/competition code/ssd_keras-master/ssd_keras-master/data/liewen_expand/JPEGImages/'
# VOC_2012_images_dir      = '../../datasets/VOCdevkit/VOC2012/JPEGImages/'

# The directories that contain the annotations.
VOC_2007_annotations_dir      = 'F:/competition code/ssd_keras-master/ssd_keras-master/data/liewen_expand/Annotations/'
# VOC_2012_annotations_dir      = '../../datasets/VOCdevkit/VOC2012/Annotations/'

# The paths to the image sets.
VOC_2007_train_image_set_filename    = 'F:/competition code/ssd_keras-master/ssd_keras-master/data/liewen_expand/ImageSets/Main/train.txt'
# VOC_2012_train_image_set_filename    = '../../datasets/VOCdevkit/VOC2012/ImageSets/Main/train.txt'
VOC_2007_val_image_set_filename      = 'F:/competition code/ssd_keras-master/ssd_keras-master/data/liewen_expand/ImageSets/Main/val.txt'
# VOC_2012_val_image_set_filename      = '../../datasets/VOCdevkit/VOC2012/ImageSets/Main/val.txt'
VOC_2007_trainval_image_set_filename = 'F:/competition code/ssd_keras-master/ssd_keras-master/data/liewen_expand/ImageSets/Main/trainval.txt'
# VOC_2012_trainval_image_set_filename = '../../datasets/VOCdevkit/VOC2012/ImageSets/Main/trainval.txt'
VOC_2007_test_image_set_filename     = 'F:/competition code/ssd_keras-master/ssd_keras-master/data/liewen_expand/ImageSets/Main/test.txt'

# The XML parser needs to now what object class names to look for and in which order to map them to integers.
# classes = ['background',
#            'aeroplane', 'bicycle', 'bird', 'boat',
#            'bottle', 'bus', 'car', 'cat',
#            'chair', 'cow', 'diningtable', 'dog',
#            'horse', 'motorbike', 'person', 'pottedplant',
#            'sheep', 'sofa', 'train', 'tvmonitor']

classes = ['background','neg']#類的名稱,此時要加上background

train_dataset.parse_xml(images_dirs=[VOC_2007_images_dir],
                        image_set_filenames=[VOC_2007_trainval_image_set_filename],
                        annotations_dirs=[VOC_2007_annotations_dir],
                        classes=classes,
                        include_classes='all',
                        exclude_truncated=False,
                        exclude_difficult=False,
                        ret=False)

val_dataset.parse_xml(images_dirs=[VOC_2007_images_dir],
                      image_set_filenames=[VOC_2007_test_image_set_filename],
                      annotations_dirs=[VOC_2007_annotations_dir],
                      classes=classes,
                      include_classes='all',
                      exclude_truncated=False,
                      exclude_difficult=True,
                      ret=False)

# Optional: Convert the dataset into an HDF5 dataset. This will require more disk space, but will
# speed up the training. Doing this is not relevant in case you activated the `load_images_into_memory`
# option in the constructor, because in that cas the images are in memory already anyway. If you don't
# want to create HDF5 datasets, comment out the subsequent two function calls.

train_dataset.create_hdf5_dataset(file_path='dataset_pascal_voc_07+12_trainval.h5',
                                  resize=False,
                                  variable_image_size=True,
                                  verbose=True)

val_dataset.create_hdf5_dataset(file_path='dataset_pascal_voc_07_test.h5',
                                resize=False,
                                variable_image_size=True,
                                verbose=True)


# 3: Set the batch size.

batch_size = 8 # Change the batch size if you like, or if you run into GPU memory issues.

# 4: Set the image transformations for pre-processing and data augmentation options.

# For the training generator:
ssd_data_augmentation = SSDDataAugmentation(img_height=img_height,
                                            img_width=img_width,
                                            background=mean_color)

# For the validation generator:
convert_to_3_channels = ConvertTo3Channels()
resize = Resize(height=img_height, width=img_width)

# 5: Instantiate an encoder that can encode ground truth labels into the format needed by the SSD loss function.

# The encoder constructor needs the spatial dimensions of the model's predictor layers to create the anchor boxes.
predictor_sizes = [model.get_layer('conv4_3_norm_mbox_conf').output_shape[1:3],
                   model.get_layer('fc7_mbox_conf').output_shape[1:3],
                   model.get_layer('conv6_2_mbox_conf').output_shape[1:3],
                   model.get_layer('conv7_2_mbox_conf').output_shape[1:3],
                   model.get_layer('conv8_2_mbox_conf').output_shape[1:3],
                   model.get_layer('conv9_2_mbox_conf').output_shape[1:3]]

ssd_input_encoder = SSDInputEncoder(img_height=img_height,
                                    img_width=img_width,
                                    n_classes=n_classes,
                                    predictor_sizes=predictor_sizes,
                                    scales=scales,
                                    aspect_ratios_per_layer=aspect_ratios,
                                    two_boxes_for_ar1=two_boxes_for_ar1,
                                    steps=steps,
                                    offsets=offsets,
                                    clip_boxes=clip_boxes,
                                    variances=variances,
                                    matching_type='multi',
                                    pos_iou_threshold=0.5,
                                    neg_iou_limit=0.5,
                                    normalize_coords=normalize_coords)

# 6: Create the generator handles that will be passed to Keras' `fit_generator()` function.

train_generator = train_dataset.generate(batch_size=batch_size,
                                         shuffle=True,
                                         transformations=[ssd_data_augmentation],
                                         label_encoder=ssd_input_encoder,
                                         returns={'processed_images',
                                                  'encoded_labels'},
                                         keep_images_without_gt=False)

val_generator = val_dataset.generate(batch_size=batch_size,
                                     shuffle=False,
                                     transformations=[convert_to_3_channels,
                                                      resize],
                                     label_encoder=ssd_input_encoder,
                                     returns={'processed_images',
                                              'encoded_labels'},
                                     keep_images_without_gt=False)

# Get the number of samples in the training and validations datasets.
train_dataset_size = train_dataset.get_dataset_size()
val_dataset_size   = val_dataset.get_dataset_size()

print("Number of images in the training dataset:\t{:>6}".format(train_dataset_size))
print("Number of images in the validation dataset:\t{:>6}".format(val_dataset_size))
print("cuiwei")

def lr_schedule(epoch):#通過回撥函式設定學習率
    if epoch < 80:
        return 0.0001
    elif epoch < 100:
        return 0.0001
    else:
        return 0.00001

# Define model callbacks.

# TODO: Set the filepath under which you want to save the model.
model_checkpoint = ModelCheckpoint(filepath='ssd300_model_liehen_expand.h5',#模型儲存名稱
                                   monitor='val_loss',
                                   verbose=1,
                                   save_best_only=True,
                                   save_weights_only=False,
                                   mode='auto',
                                   period=1)
#model_checkpoint.best =

csv_logger = CSVLogger(filename='ssd300_pascal_07+12_training_log.csv',
                       separator=',',
                       append=True)

learning_rate_scheduler = LearningRateScheduler(schedule=lr_schedule,
                                                verbose=1)

terminate_on_nan = TerminateOnNaN()

callbacks = [model_checkpoint,
             csv_logger,
             learning_rate_scheduler,
             terminate_on_nan]

# If you're resuming a previous training, set `initial_epoch` and `final_epoch` accordingly.
initial_epoch   = 0
final_epoch     = 20
steps_per_epoch = 80

history = model.fit_generator(generator=train_generator,
                              steps_per_epoch=steps_per_epoch,
                              epochs=final_epoch,
                              callbacks=callbacks,
                              validation_data=val_generator,
                              validation_steps=ceil(val_dataset_size/batch_size),
                              initial_epoch=initial_epoch)


五、測試資料

訓練完成後,對模型進行測試,test_ssd300.py檔案,原始碼如下:

from keras import backend as K
from keras.models import load_model
from keras.preprocessing import image
from keras.optimizers import Adam
from imageio import imread
import numpy as np
from matplotlib import pyplot as plt

from models.keras_ssd300 import ssd_300
from keras_loss_function.keras_ssd_loss import SSDLoss
from keras_layers.keras_layer_AnchorBoxes import AnchorBoxes
from keras_layers.keras_layer_DecodeDetections import DecodeDetections
from keras_layers.keras_layer_DecodeDetectionsFast import DecodeDetectionsFast
from keras_layers.keras_layer_L2Normalization import L2Normalization

from ssd_encoder_decoder.ssd_output_decoder import decode_detections, decode_detections_fast

from data_generator.object_detection_2d_data_generator import DataGenerator
from data_generator.object_detection_2d_photometric_ops import ConvertTo3Channels
from data_generator.object_detection_2d_geometric_ops import Resize
from data_generator.object_detection_2d_misc_utils import apply_inverse_transforms
import cv2



# Set the image size.
img_height = 300
img_width = 300

# # TODO: Set the path to the `.h5` file of the model to be loaded.
# # model_path = 'ssd300_model.h5'
# model_path = 'VGG_VOC0712Plus_SSD_300x300_iter_240000.h5'
# # We need to create an SSDLoss object in order to pass that to the model loader.
# ssd_loss = SSDLoss(neg_pos_ratio=3, n_neg_min=0, alpha=1.0)
#
# K.clear_session() # Clear previous models from memory.
#
# model = load_model(model_path, custom_objects={'AnchorBoxes': AnchorBoxes,
#                                                'L2Normalization': L2Normalization,
#                                                'DecodeDetections': DecodeDetections,
#                                                'compute_loss': ssd_loss.compute_loss})
K.clear_session() # Clear previous models from memory.

model = ssd_300(image_size=(img_height, img_width, 3),
                n_classes=1,
                mode='inference',
                l2_regularization=0.0005,
                scales=[0.1, 0.2, 0.37, 0.54, 0.71, 0.88, 1.05], # The scales for MS COCO are [0.07, 0.15, 0.33, 0.51, 0.69, 0.87, 1.05]
                aspect_ratios_per_layer=[[1.0, 2.0, 0.5],
                                         [1.0, 2.0, 0.5, 3.0, 1.0/3.0],
                                         [1.0, 2.0, 0.5, 3.0, 1.0/3.0],
                                         [1.0, 2.0, 0.5, 3.0, 1.0/3.0],
                                         [1.0, 2.0, 0.5],
                                         [1.0, 2.0, 0.5]],
                two_boxes_for_ar1=True,
                steps=[8, 16, 32, 64, 100, 300],
                offsets=[0.5, 0.5, 0.5, 0.5, 0.5, 0.5],
                clip_boxes=False,
                variances=[0.1, 0.1, 0.2, 0.2],
                normalize_coords=True,
                subtract_mean=[123, 117, 104],
                swap_channels=[2, 1, 0],
                confidence_thresh=0.5,
                iou_threshold=0.45,
                top_k=200,
                nms_max_output_size=400)

# 2: Load the trained weights into the model.

# TODO: Set the path of the trained weights.
# weights_path ='VGG_VOC0712Plus_SSD_300x300_iter_240000.h5'
# weights_path ='ssd300_model_liehen_small.h5'
# weights_path ='ssd300_model_liehen_expand.h5'
weights_path ='ssd300_model_liehen.h5'
model.load_weights(weights_path, by_name=True)

# 3: Compile the model so that Keras won't complain the next time you load it.

adam = Adam(lr=0.001, beta_1=0.9, beta_2=0.999, epsilon=1e-08, decay=0.0)

ssd_loss = SSDLoss(neg_pos_ratio=3, alpha=1.0)

model.compile(optimizer=adam, loss=ssd_loss.compute_loss)
model.summary()

orig_images = [] # Store the images here.
input_images = [] # Store resized versions of the images here.

# We'll only load one image in this example.
# img_path = 'VOC2007/JPEGImages/16.jpg'
img_path='F:/Data/crack image/ChallengeDataset/ChallengeDataset/train/neg/428.jpg'
image_opencv=cv2.imread(img_path)
# img_path='VOCtest_06-Nov-2007/VOCdevkit/VOC2007/JPEGImages/000001.jpg'
orig_images.append(imread(img_path))
img = image.load_img(img_path, target_size=(img_height, img_width))
img = image.img_to_array(img)
input_images.append(img)
input_images = np.array(input_images)

#對新的影象進行預測
y_pred = model.predict(input_images)
#
confidence_threshold = 0

y_pred_thresh = [y_pred[k][y_pred[k,:,1] > confidence_threshold] for k in range(y_pred.shape[0])]

np.set_printoptions(precision=2, suppress=True, linewidth=90)
print("Predicted boxes:\n")
print('   class   conf xmin   ymin   xmax   ymax')
print(y_pred_thresh[0])


# Display the image and draw the predicted boxes onto it.

# Set the colors for the bounding boxes
colors = plt.cm.hsv(np.linspace(0, 1, 21)).tolist()
# classes = ['background',
#            'aeroplane', 'bicycle', 'bird', 'boat',
#            'bottle', 'bus', 'car', 'cat',
#            'chair', 'cow', 'diningtable', 'dog',
#            'horse', 'motorbike', 'person', 'pottedplant',
#            'sheep', 'sofa', 'train', 'tvmonitor']

classes=['background','neg']

plt.figure(figsize=(20,12))
plt.imshow(orig_images[0])

current_axis = plt.gca()

for box in y_pred_thresh[0]:
    # Transform the predicted bounding boxes for the 300x300 image to the original image dimensions.
    xmin = box[2] * orig_images[0].shape[1] / img_width
    ymin = box[3] * orig_images[0].shape[0] / img_height
    xmax = box[4] * orig_images[0].shape[1] / img_width
    ymax = box[5] * orig_images[0].shape[0] / img_height
    color = colors[int(box[0])]
    label = '{}: {:.2f}'.format(classes[int(box[0])], box[1])
    current_axis.add_patch(plt.Rectangle((xmin, ymin), xmax-xmin, ymax-ymin, color=color, fill=False, linewidth=2))
    current_axis.text(xmin, ymin, label, size='x-large', color='white', bbox={'facecolor':color, 'alpha':1.0})
    cv2.putText(image_opencv, label, (int(xmin), int(ymin)-10), cv2.FONT_HERSHEY_COMPLEX, 0.8, (255, 255, 0), 1)
    cv2.rectangle(image_opencv, (int(xmin), int(ymin)), (int(xmax), int(ymax)), (0, 255, 0), 2)

cv2.namedWindow("Canvas",0)
cv2.imshow("Canvas", image_opencv)
cv2.waitKey(0)

測試結果:

在這裡插入圖片描述 在這裡插入圖片描述

六、原始碼和資料
