jvectormap地圖外掛初體驗
jvectormap 地圖的初次使用研究,記錄下碰見的問題和解決問題的過程。

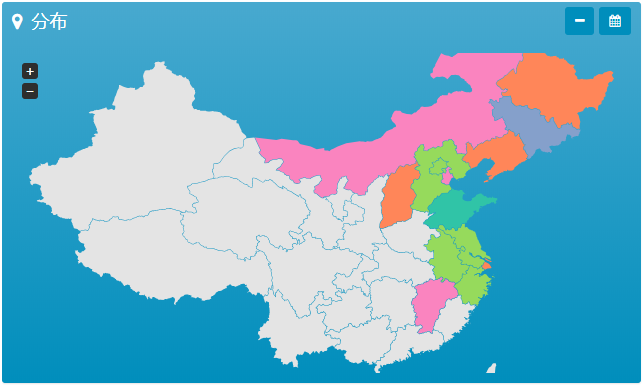

簡單使用的效果如下:
從實際使用過程中碰見的問題說起吧:
1:版本問題:百度搜索jvectormap的使用教程都引用的是jquery 1.8.2版本,而專案採用的是jquery 3.3.1版本,在使用地圖區域著色時報錯:
jquery-3.3.1.js:3827 Uncaught TypeError: Cannot read property 'apply' of undefined
at jQuery.fn.init.$.fn.vectorMap (jquery-jvectormap-2.0.3.min.js:1)
著色的js程式碼:
$('#map').vectorMap('set', 'colors', {
'CN-11': '#66C2A5',
'CN-52': '#FC8D62'
});
解決辦法:
map.series.regions[0].setValues({'CN-11': '#66C2A5', 'CN-52': '#FC8D62'});
這裡map是jvectormap的例項化物件;例項化過程見後面;
2:臺灣地圖的svg資訊沒有:
這個也是折騰了半天,到網上找的臺灣的Path 向量資訊,發現座標定位不對,後面又搜尋了一番,找到了現在的版本;
3:在例項化jvectormap物件的引數中(如下所示),regions下的scale和問題1中的map.series.regions[0].setValues是衝突的:
series: {
regions: [{
scale: ['#92c1dc', '#ebf4f9'],
normalizeFunction: 'polynomial',
attribute: 'fill',
values: dataColor
}]
}...
此時會報錯:
Uncaught TypeError: Cannot read property 'initial' of undefined
at jvm.DataSeries.setValues (VM984 jquery-jvectormap-2.0.3.min.js:1)
at new jvm.DataSeries (VM984 jquery-jvectormap-2.0.3.min.js:1)
at jvm.Map.createSeries (VM984 jquery-jvectormap-2.0.3.min.js:2)
解決辦法:拿掉scale的定義,所以如果要自定義顏色區域時,需要拿掉scale的定義。
最後,一個簡單的使用步驟:
1:到官網上下載壓縮版本:http://jvectormap.com ;Full Version: demo中引用的js十分龐大,初次使用還是用壓縮版本好,先有一個整體認識,否則會被龐大的js量給嚇到了;
2:新增css,js 的引用,依賴於jquery.
例如:<link href="~/Content/scripts/plugin/jvectormap/jquery-jvectormap-2.0.3.css" rel="stylesheet" />
<script src="~/Content/scripts/plugin/jvectormap/jquery-jvectormap-2.0.3.min.js"></script>
3:例項化map物件,配置引數,各引數的含義可以到官網上去檢視文件,初次使用結合英文描述,可以改些引數,看看效果就更能明白英文描述到底說的什麼,至於更高階或更復雜的效果,需要深入研究,比如:drill down, makers,labels ,legend等的使用。先滿足基本需求在擴充套件吧。一個簡單的例子如下:
var dataColor = {
'CN-52': 50,
'CN-35': 35,
'CN-50': 45,
'CN-51': 58,
'CN-31': 69,
'CN-32': 79,
'CN-33': 100,
'CN-14': 200,
'CN-13': 1,
'CN-34': 40,
'CN-36': 50,
'CN-37': 60,
'CN-41': 170,
'CN-43': 170,
'CN-42': 170,
'CN-45': 100,
'CN-44': 100,
'CN-61': 100,
'CN-48': 3
}
var map = new jvm.Map({
map: 'cn_mill',
backgroundColor: 'transparent',
container: $('#city_map'),
zoomAnimate: true,
zoomMax: 5,
zoomMin: 1,
// zoomOnScroll: false,
regionsSelectableOne: true,
regionsSelectable: true,
regionStyle: {
initial: {
fill: '#e4e4e4'
},
selected: {
fill: '#d6cfd8'
},
},
focusOn: {
x: 0.5,
y: 0.5,
scale: 1.0,
animate: true
},
series: {
regions: [{
// scale: ['#92c1dc', '#ebf4f9'],
normalizeFunction: 'polynomial',
attribute: 'fill',
values: dataColor
}]
},
onRegionClick: function (event, code) {
$.each(dataStatus, function (i, items) {
if ((code == items.id) && (items.event != '')) {
alert(code);
}
});
},
onRegionTipShow: function (e, el, code) {
$.each(dataStatus, function (i, items) {
if (code == items.id) {
el.html("<span><b style='font-size:12px;color:yellow;'>{0}</b>{1}</span>".format([items.name, items.event]));
}
});
}
});
// $('#city_map').vectorMap('set', 'focus', { regions: ['CN-11', 'CN-12'], animate: true });
var palette = ['#66C2A5', '#FC8D62', '#8DA0CB', '#E78AC3', '#A6D854'];
generateColors = function () {
var colors = {},
key;
for (key in map.regions) {
colors[key] = palette[Math.floor(Math.random() * palette.length)];
}
return colors;
};
map.series.regions[0].setValues(generateColors());
第一次用肯定有很多的迷惘或碰壁的地方,多嘗試,走些彎路折回來也是好事,加深對問題的認識和了解!本文完。
