深度學習:乳腺論文 end2end patch->whole image
阿新 • • 發佈:2018-11-29
論文:end to end training for whole image breast cancer screening using an all convolutional design
資料集:CBIS-DDSM (CC+MLO)*(right +left) one person ==》 (753鈣化)+(891腫塊) 資料增擴
patch set
- s1: 1 ROI +1背景 in the same image
- s10:ROI overlapping raito of 0.9, 10 patch and 10 background in the same image
任務:patch訓練 (5類:背景,鈣化良性,鈣化惡性,腫塊良性,腫塊惡性)
二分類:正常(0-2),異常(4-6) (3不參與分類)
定位:CAM
網路結構: Vggnet /Resnet+two classification

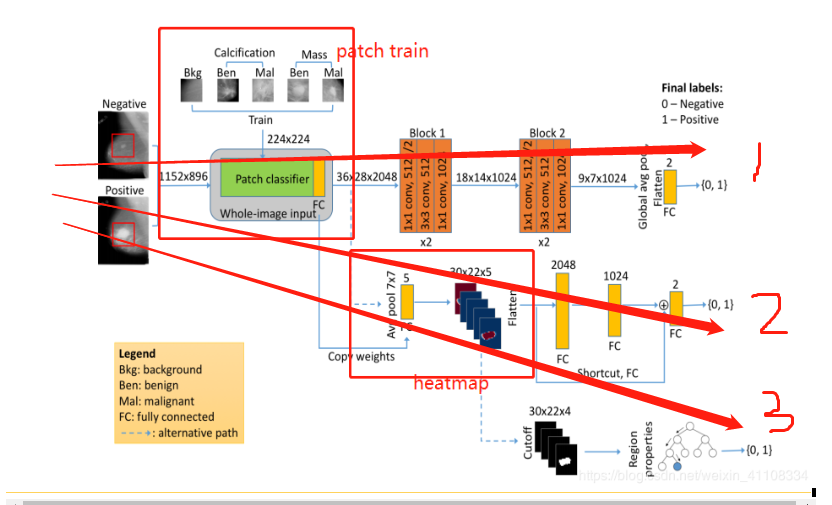

一、訓練流程:
中心思想:patch 訓練分類器,再用whole image 去(訓練+測試)
1、預訓練 ImageNet
2、patch train :用掩碼獲取patch,將五種patch送入網路訓練(resize224*224) train 5分類 (instance label)
3、image train : 三種方法: (image label)
- 將 patch classifier 訓練的 fc 層去掉,top layer +conv->2分類
- 加入heatmap +fc -->2分類
- 加入heatmap+random forest classifer -->2分類
