程式碼的框架仍然是——《https://github.com/xinntao/BasicSR》

給出SFTGAN的論文《Recovering Realistic Texture in Image Super-resolution by Deep Spatial Feature Transform》連結https://arxiv.org/pdf/1804.02815.pdf

之前已經寫過SFTGAN論文的閱讀筆記（ 閱讀筆記之——《Recovering Realistic Texture in Image Super-resolution by Deep Spatial Feature Transform》

SFTGAN的網路結構如下圖所示

SFT——特徵空間的轉換（ Spatial Feature Transform ）

首先檢視__init__.py

def create_model(opt):
    model = opt['model']##this para is came from the .json file

    #the model in jason, decided which modl import
    #so if you add a new model, this .py must be modified
    if model == 'sr':###this is the SR model
        from .SR_model import SRModel as M#take sr as an example
    elif model == 'srgan':###this is the SRGAN
        from .SRGAN_model import SRGANModel as M
    elif model == 'srragan':
        from .SRRaGAN_model import SRRaGANModel as M
    elif model == 'sftgan':###this is the SFTGAN
        from .SFTGAN_ACD_model import SFTGAN_ACD_Model as M
    else:
        raise NotImplementedError('Model [{:s}] not recognized.'.format(model))
    m = M(opt)
    print('Model [{:s}] is created.'.format(m.__class__.__name__))
    return m#return the model


在SFTGAN_ACD_model.py裡面為SFTGAN的網路

由於本博文主要關於SFTNET部分，就先不看跟GAN相關的程式碼部分了

class SFTLayer(nn.Module):
    def __init__(self):
        super(SFTLayer, self).__init__()
        self.SFT_scale_conv0 = nn.Conv2d(32, 32, 1)
        self.SFT_scale_conv1 = nn.Conv2d(32, 64, 1)
        self.SFT_shift_conv0 = nn.Conv2d(32, 32, 1)
        self.SFT_shift_conv1 = nn.Conv2d(32, 64, 1)

    def forward(self, x):
        # x[0]: fea; x[1]: cond
        scale = self.SFT_scale_conv1(F.leaky_relu(self.SFT_scale_conv0(x[1]), 0.1, inplace=True))
        shift = self.SFT_shift_conv1(F.leaky_relu(self.SFT_shift_conv0(x[1]), 0.1, inplace=True))
        return x[0] * (scale + 1) + shift


class ResBlock_SFT(nn.Module):
    def __init__(self):
        super(ResBlock_SFT, self).__init__()
        self.sft0 = SFTLayer()
        self.conv0 = nn.Conv2d(64, 64, 3, 1, 1)
        self.sft1 = SFTLayer()
        self.conv1 = nn.Conv2d(64, 64, 3, 1, 1)

    def forward(self, x):
        # x[0]: fea; x[1]: cond
        fea = self.sft0(x)
        fea = F.relu(self.conv0(fea), inplace=True)
        fea = self.sft1((fea, x[1]))
        fea = self.conv1(fea)
        return (x[0] + fea, x[1])  # return a tuple containing features and conditions


class SFT_Net(nn.Module):##############the main network
    def __init__(self):
        super(SFT_Net, self).__init__()
        self.conv0 = nn.Conv2d(3, 64, 3, 1, 1)

        sft_branch = []
        for i in range(16):
            sft_branch.append(ResBlock_SFT())###residual block+SFT layer
        sft_branch.append(SFTLayer())
        sft_branch.append(nn.Conv2d(64, 64, 3, 1, 1))
        self.sft_branch = nn.Sequential(*sft_branch)

        self.HR_branch = nn.Sequential(
            nn.Conv2d(64, 256, 3, 1, 1),
            nn.PixelShuffle(2),
            nn.ReLU(True),
            nn.Conv2d(64, 256, 3, 1, 1),
            nn.PixelShuffle(2),
            nn.ReLU(True),
            nn.Conv2d(64, 64, 3, 1, 1),
            nn.ReLU(True),
            nn.Conv2d(64, 3, 3, 1, 1)
        )

        self.CondNet = nn.Sequential(
            nn.Conv2d(8, 128, 4, 4),
            nn.LeakyReLU(0.1, True),
            nn.Conv2d(128, 128, 1),
            nn.LeakyReLU(0.1, True),
            nn.Conv2d(128, 128, 1),
            nn.LeakyReLU(0.1, True),
            nn.Conv2d(128, 128, 1),
            nn.LeakyReLU(0.1, True),
            nn.Conv2d(128, 32, 1)
        )

    def forward(self, x):
        # x[0]: img; x[1]: seg
        cond = self.CondNet(x[1])
        fea = self.conv0(x[0])
        res = self.sft_branch((fea, cond))###there are two input of the SFT layer, the one is the seg,while the other is the output pf the convolution
        fea = fea + res
        out = self.HR_branch(fea)
        return out



其實網路結構比較好理解，關鍵就是怎麼把資料輸入網路了

在網路喂資料部分是：

def feed_data(self, data, need_HR=True):###the x[0]is the LR, the X[1]is the segment
        # LR
        self.var_L = data['LR'].to(self.device)
        # seg
        self.var_seg = data['seg'].to(self.device)
        # category
        self.var_cat = data['category'].long().to(self.device)

        if need_HR:  # train or val
            self.var_H = data['HR'].to(self.device)

而之前的程式碼，比如SR網路中是：

    def feed_data(self, data, need_HR=True):#feed the data,
        self.var_L = data['LR'].to(self.device)  # LR
        if need_HR:
            self.real_H = data['HR'].to(self.device)  # HR

估計關鍵點應該在data中，在data檔案中的__init__.py。之前都沒有好好解讀過資料處理的檔案，正好借次機會，把xintao前輩的程式碼框架的資料處理部分解讀好

import torch.utils.data


def create_dataloader(dataset, dataset_opt):#while the dataloader is the data(from the create_dataset) put into the GPU
    phase = dataset_opt['phase']
    if phase == 'train':
        batch_size = dataset_opt['batch_size']
        shuffle = dataset_opt['use_shuffle']#
        num_workers = dataset_opt['n_workers']#
    else:
        batch_size = 1
        shuffle = False
        num_workers = 1

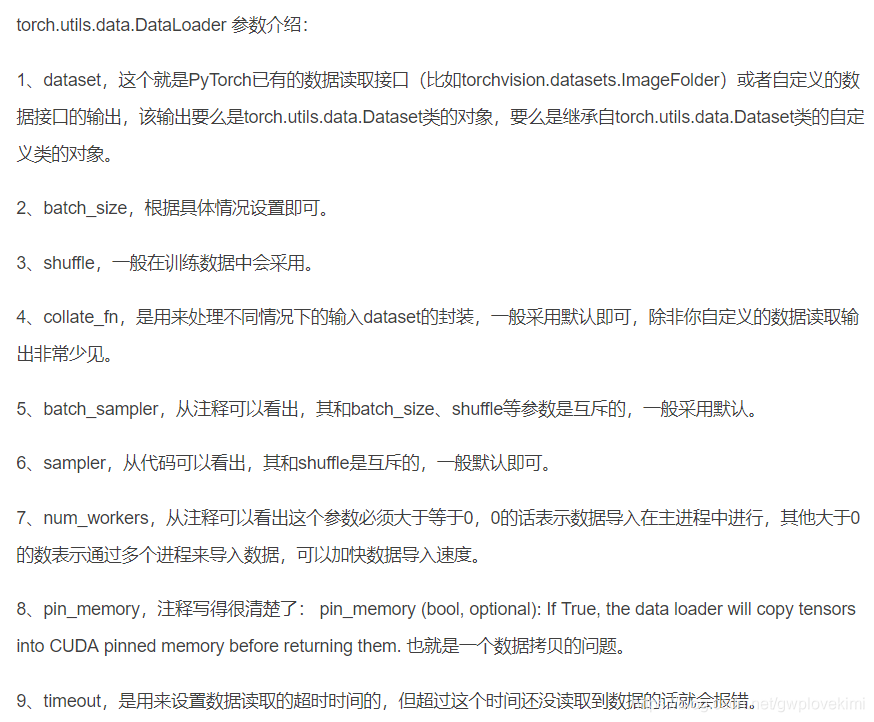

    return torch.utils.data.DataLoader(
        dataset, batch_size=batch_size, shuffle=shuffle, num_workers=num_workers, pin_memory=True)###read my CSDN


def create_dataset(dataset_opt):###data set is the data
    mode = dataset_opt['mode']
    if mode == 'LR':
        from data.LR_dataset import LRDataset as D
    elif mode == 'LRHR':### this should be deeply read
        from data.LRHR_dataset import LRHRDataset as D
    elif mode == 'LRHRseg_bg':
        from data.LRHR_seg_bg_dataset import LRHRSeg_BG_Dataset as D
    else:
        raise NotImplementedError('Dataset [{:s}] is not recognized.'.format(mode))
    dataset = D(dataset_opt)
    print('Dataset [{:s} - {:s}] is created.'.format(dataset.__class__.__name__,
                                                     dataset_opt['name']))
    return dataset

選擇LRHR_seg_bg_dataset.py來解讀

import os.path
import random
import numpy as np
import cv2
import torch
import torch.utils.data as data
import data.util as util


class LRHRSeg_BG_Dataset(data.Dataset):
    '''
    Read HR image, segmentation probability map; generate LR image, category for SFTGAN
    also sample general scenes for background
    need to generate LR images on-the-fly
    '''

    def __init__(self, opt):
        super(LRHRSeg_BG_Dataset, self).__init__()
        self.opt = opt
        self.paths_LR = None
        self.paths_HR = None
        self.paths_HR_bg = None  # HR images for background scenes
        self.LR_env = None  # environment for lmdb
        self.HR_env = None
        self.HR_env_bg = None

        # read image list from lmdb or image files
        #LR、HR，and the seg
        self.HR_env, self.paths_HR = util.get_image_paths(opt['data_type'], opt['dataroot_HR'])
        self.LR_env, self.paths_LR = util.get_image_paths(opt['data_type'], opt['dataroot_LR'])
        self.HR_env_bg, self.paths_HR_bg = util.get_image_paths(opt['data_type'], \
            opt['dataroot_HR_bg'])

        assert self.paths_HR, 'Error: HR path is empty.'
        if self.paths_LR and self.paths_HR:
            assert len(self.paths_LR) == len(self.paths_HR), \
                'HR and LR datasets have different number of images - {}, {}.'.format(\
                len(self.paths_LR), len(self.paths_HR))

        self.random_scale_list = [1, 0.9, 0.8, 0.7, 0.6, 0.5]
        self.ratio = 10  # 10 OST data samples and 1 DIV2K general data samples(background)

    def __getitem__(self, index):
        HR_path, LR_path = None, None
        scale = self.opt['scale']#the upscale
        HR_size = self.opt['HR_size']#the HR patch size

        # get HR image
        if self.opt['phase'] == 'train' and \
                random.choice(list(range(self.ratio))) == 0:  # read background images
            bg_index = random.randint(0, len(self.paths_HR_bg) - 1)
            HR_path = self.paths_HR_bg[bg_index]
            img_HR = util.read_img(self.HR_env_bg, HR_path)
            seg = torch.FloatTensor(8, img_HR.shape[0], img_HR.shape[1]).fill_(0)
            seg[0, :, :] = 1  # background
        else:
            HR_path = self.paths_HR[index]
            img_HR = util.read_img(self.HR_env, HR_path)
            seg = torch.load(HR_path.replace('/img/', '/bicseg/').replace('.png', '.pth'))
            # read segmentatin files, you should change it to your settings.

        # modcrop in the validation / test phase
        if self.opt['phase'] != 'train':
            img_HR = util.modcrop(img_HR, 8)

        seg = np.transpose(seg.numpy(), (1, 2, 0))

        # get LR image
        if self.paths_LR:
            LR_path = self.paths_LR[index]
            img_LR = util.read_img(self.LR_env, LR_path)
        else:  # down-sampling on-the-fly
            # randomly scale during training
            if self.opt['phase'] == 'train':
                random_scale = random.choice(self.random_scale_list)
                H_s, W_s, _ = seg.shape

                def _mod(n, random_scale, scale, thres):
                    rlt = int(n * random_scale)
                    rlt = (rlt // scale) * scale
                    return thres if rlt < thres else rlt

                H_s = _mod(H_s, random_scale, scale, HR_size)
                W_s = _mod(W_s, random_scale, scale, HR_size)
                img_HR = cv2.resize(np.copy(img_HR), (W_s, H_s), interpolation=cv2.INTER_LINEAR)
                seg = cv2.resize(np.copy(seg), (W_s, H_s), interpolation=cv2.INTER_NEAREST)

            H, W, _ = img_HR.shape
            # using matlab imresize
            img_LR = util.imresize_np(img_HR, 1 / scale, True)
            if img_LR.ndim == 2:
                img_LR = np.expand_dims(img_LR, axis=2)

        H, W, C = img_LR.shape
        if self.opt['phase'] == 'train':
            LR_size = HR_size // scale

            # randomly crop
            rnd_h = random.randint(0, max(0, H - LR_size))
            rnd_w = random.randint(0, max(0, W - LR_size))
            img_LR = img_LR[rnd_h:rnd_h + LR_size, rnd_w:rnd_w + LR_size, :]
            rnd_h_HR, rnd_w_HR = int(rnd_h * scale), int(rnd_w * scale)
            img_HR = img_HR[rnd_h_HR:rnd_h_HR + HR_size, rnd_w_HR:rnd_w_HR + HR_size, :]
            seg = seg[rnd_h_HR:rnd_h_HR + HR_size, rnd_w_HR:rnd_w_HR + HR_size, :]

            # augmentation - flip, rotate
            img_LR, img_HR, seg = util.augment([img_LR, img_HR, seg], self.opt['use_flip'],
                                               self.opt['use_rot'])

            # category
            #this part is based on the seg
            if 'building' in HR_path:
                category = 1
            elif 'plant' in HR_path:
                category = 2
            elif 'mountain' in HR_path:
                category = 3
            elif 'water' in HR_path:
                category = 4
            elif 'sky' in HR_path:
                category = 5
            elif 'grass' in HR_path:
                category = 6
            elif 'animal' in HR_path:
                category = 7
            else:
                category = 0  # background
        else:
            category = -1  # during val, useless

        # BGR to RGB, HWC to CHW, numpy to tensor
        if img_HR.shape[2] == 3:
            img_HR = img_HR[:, :, [2, 1, 0]]
            img_LR = img_LR[:, :, [2, 1, 0]]
        img_HR = torch.from_numpy(np.ascontiguousarray(np.transpose(img_HR, (2, 0, 1)))).float()
        img_LR = torch.from_numpy(np.ascontiguousarray(np.transpose(img_LR, (2, 0, 1)))).float()
        seg = torch.from_numpy(np.ascontiguousarray(np.transpose(seg, (2, 0, 1)))).float()

        if LR_path is None:
            LR_path = HR_path
        return {
            'LR': img_LR,
            'HR': img_HR,
            'seg': seg,
            'category': category,
            'LR_path': LR_path,
            'HR_path': HR_path
        }

    def __len__(self):
        return len(self.paths_HR)

與之前的SR進行對比

LRHR_dataset.py

import os.path
import random
import numpy as np
import cv2
import torch
import torch.utils.data as data
import data.util as util


class LRHRDataset(data.Dataset):
    '''
    Read LR and HR image pairs.
    If only HR image is provided, generate LR image on-the-fly.
    The pair is ensured by 'sorted' function, so please check the name convention.
    '''

    def __init__(self, opt):
        super(LRHRDataset, self).__init__()
        self.opt = opt
        self.paths_LR = None
        self.paths_HR = None
        self.LR_env = None  # environment for lmdb
        self.HR_env = None

        # read image list from subset list txt
        if opt['subset_file'] is not None and opt['phase'] == 'train':
            with open(opt['subset_file']) as f:
                self.paths_HR = sorted([os.path.join(opt['dataroot_HR'], line.rstrip('\n')) \
                        for line in f])
            if opt['dataroot_LR'] is not None:
                raise NotImplementedError('Now subset only supports generating LR on-the-fly.')
        else:  # read image list from lmdb or image files
            self.HR_env, self.paths_HR = util.get_image_paths(opt['data_type'], opt['dataroot_HR'])
            self.LR_env, self.paths_LR = util.get_image_paths(opt['data_type'], opt['dataroot_LR'])

        assert self.paths_HR, 'Error: HR path is empty.'
        if self.paths_LR and self.paths_HR:
            assert len(self.paths_LR) == len(self.paths_HR), \
                'HR and LR datasets have different number of images - {}, {}.'.format(\
                len(self.paths_LR), len(self.paths_HR))

        self.random_scale_list = [1]

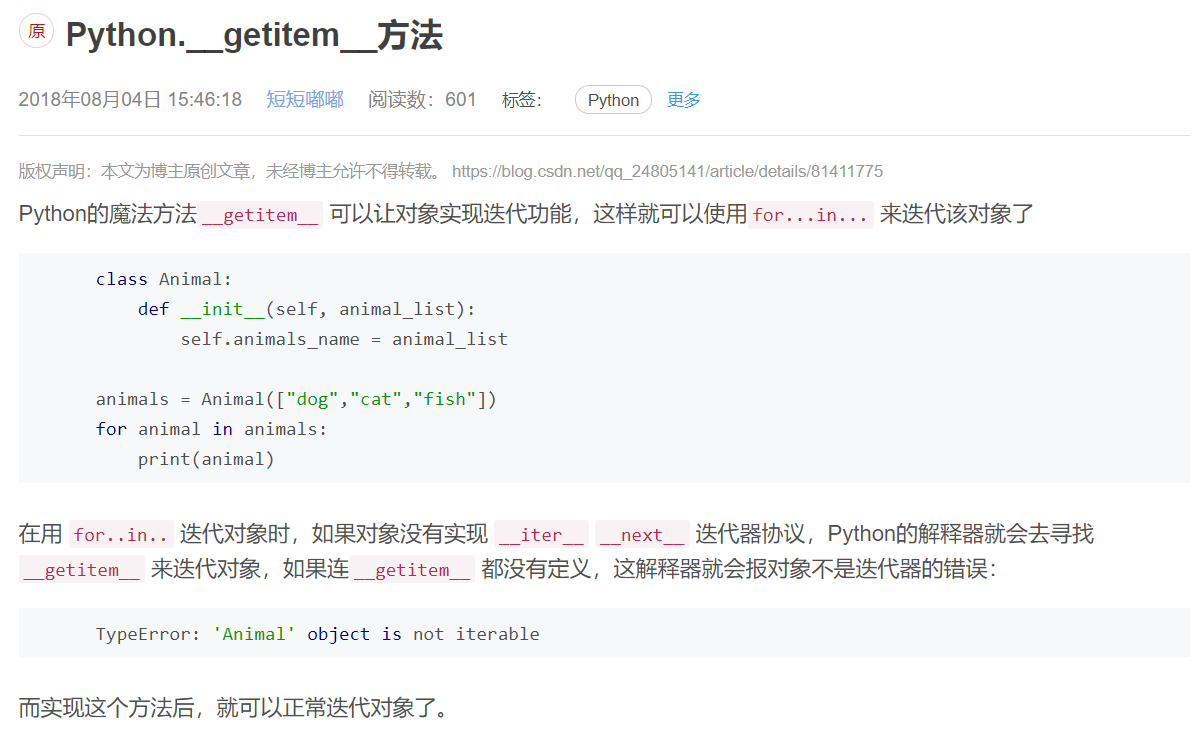

    def __getitem__(self, index):###Objects can be iterated
        HR_path, LR_path = None, None
        scale = self.opt['scale']#the upscale
        HR_size = self.opt['HR_size']#the HR patch size

        # get HR image
        HR_path = self.paths_HR[index]
        img_HR = util.read_img(self.HR_env, HR_path)###feed the image
        # modcrop in the validation / test phase
        if self.opt['phase'] != 'train':
            img_HR = util.modcrop(img_HR, scale)
        # change color space if necessary
        if self.opt['color']:
            img_HR = util.channel_convert(img_HR.shape[2], self.opt['color'], [img_HR])[0]


        #you just should know that this is the process of training
        # get LR image
        if self.paths_LR:
            LR_path = self.paths_LR[index]
            img_LR = util.read_img(self.LR_env, LR_path)
        else:  # down-sampling on-the-fly
            # randomly scale during training
            if self.opt['phase'] == 'train':
                random_scale = random.choice(self.random_scale_list)
                H_s, W_s, _ = img_HR.shape

                def _mod(n, random_scale, scale, thres):
                    rlt = int(n * random_scale)
                    rlt = (rlt // scale) * scale
                    return thres if rlt < thres else rlt

                H_s = _mod(H_s, random_scale, scale, HR_size)
                W_s = _mod(W_s, random_scale, scale, HR_size)
                img_HR = cv2.resize(np.copy(img_HR), (W_s, H_s), interpolation=cv2.INTER_LINEAR)
                # force to 3 channels
                if img_HR.ndim == 2:
                    img_HR = cv2.cvtColor(img_HR, cv2.COLOR_GRAY2BGR)

            H, W, _ = img_HR.shape
            # using matlab imresize
            img_LR = util.imresize_np(img_HR, 1 / scale, True)
            if img_LR.ndim == 2:
                img_LR = np.expand_dims(img_LR, axis=2)

        if self.opt['phase'] == 'train':
            # if the image size is too small
            H, W, _ = img_HR.shape
            if H < HR_size or W < HR_size:
                img_HR = cv2.resize(
                    np.copy(img_HR), (HR_size, HR_size), interpolation=cv2.INTER_LINEAR)
                # using matlab imresize
                img_LR = util.imresize_np(img_HR, 1 / scale, True)
                if img_LR.ndim == 2:
                    img_LR = np.expand_dims(img_LR, axis=2)

            H, W, C = img_LR.shape
            LR_size = HR_size // scale###this step make sure the size of the LR is match the size of HR


            ############################this is the augmentation#####################################
            # randomly crop
            rnd_h = random.randint(0, max(0, H - LR_size))
            rnd_w = random.randint(0, max(0, W - LR_size))
            img_LR = img_LR[rnd_h:rnd_h + LR_size, rnd_w:rnd_w + LR_size, :]
            rnd_h_HR, rnd_w_HR = int(rnd_h * scale), int(rnd_w * scale)
            img_HR = img_HR[rnd_h_HR:rnd_h_HR + HR_size, rnd_w_HR:rnd_w_HR + HR_size, :]

            # augmentation - flip, rotate
            img_LR, img_HR = util.augment([img_LR, img_HR], self.opt['use_flip'], \
                self.opt['use_rot'])
            #########################################################################################

        # change color space if necessary
        if self.opt['color']:
            img_LR = util.channel_convert(C, self.opt['color'], [img_LR])[0]

        # BGR to RGB, HWC to CHW, numpy to tensor
        if img_HR.shape[2] == 3:
            img_HR = img_HR[:, :, [2, 1, 0]]
            img_LR = img_LR[:, :, [2, 1, 0]]
        img_HR = torch.from_numpy(np.ascontiguousarray(np.transpose(img_HR, (2, 0, 1)))).float()
        img_LR = torch.from_numpy(np.ascontiguousarray(np.transpose(img_LR, (2, 0, 1)))).float()

        if LR_path is None:
            LR_path = HR_path
        return {'LR': img_LR, 'HR': img_HR, 'LR_path': LR_path, 'HR_path': HR_path}

    def __len__(self):
        return len(self.paths_HR)

補充

torch.utils.data.dataloader()用法

關於def __getitem__(self, index):

https://blog.csdn.net/qq_24805141/article/details/81411775
